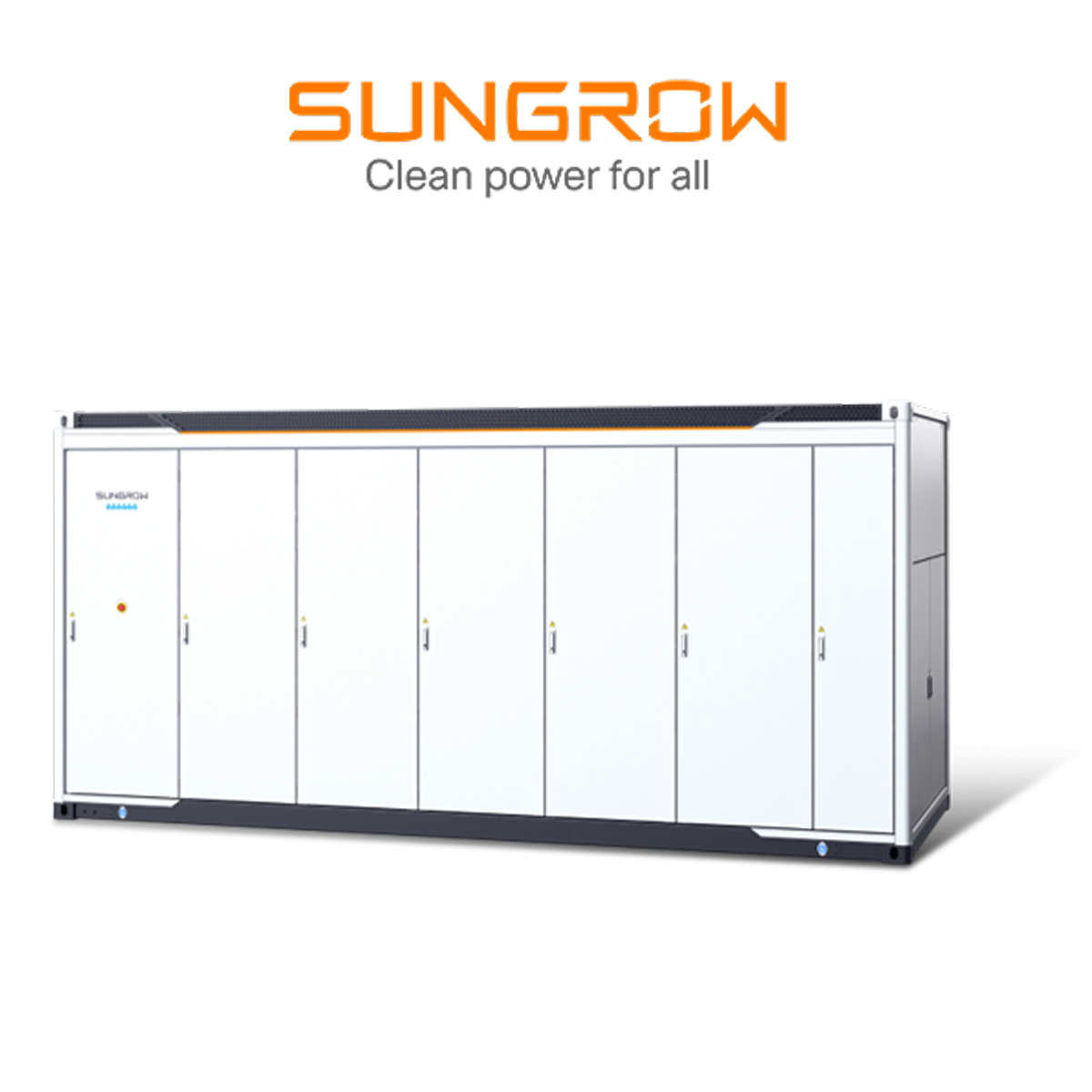

ST5015UX-2H and ST5015UX-4H

Descripción

PowerTitan 2.0 Liquid Cooled Energy Storage System

OPTIMAL COST

Intelligent liquid cooled temperature control system to optimize the auxiliary power consumption
Pre-assembled, no battery module handling on site, transportation of complete system

SAFE AND RELIABLE

Electrical safety management, overcurrent fast breaking and arc extinguishing protection
The electrical cabinet and battery cabinet are separated to prevent thermal runaway

EFFICIENT AND FLEXIBLE

High efficiency heat dissipation, increase battery life and system discharge capacity
Front single door open design, supporting back to back layout drawing
Function test in factory, limited on site work, accelerate commissioning process

CONVENIENT O&M

One-click system upgrade
Automatic coollant refilling design
Online intelligent monitoring

DC side

Cell type: LFP - 3.2 V / 314 Ah
Battery configuration: 5015 kWh
Nominal capacity: 1123.2 V ~ 1497.6 V
Nominal voltage range: 5015 kWh

AC side

Nominal AC power: 210 kVA * 12 - 210 kVA * 6
AC current distortion rate: < 3 % (Nominal Power)
DC component: < 0.5 %
Nominal AC voltage: 690 V
AC voltage range: 607 V ~ 759 V
Termination (LV): 352 A * 3 Phase * 6 - 352 A * 3 Phase * 3
Power factor: > 0.99 (Nominal Power)
Adjustable range of reactive power: - 100 % ~ 100 %
Nominal frequency: 50 Hz/60 Hz
Isolation method: Transformerless

System parameter

Dimension (W * H * D): 6058 mm * 2896 mm * 2438 mm
Weight: 42500 k g / 93696.5 lbs - 42000 kg / 92594.0 Ibs
Degree of protection: IP55
Anti corrosion degree: C4
Operation temperature range: 30 °C ~ 50 °C ( > 45 °C Derating ) - 22 F ~ 122 F ( > 113 F Derating )
Temperature control method: Intelligent Liquid Cooling
